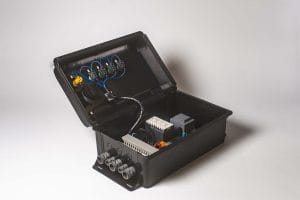

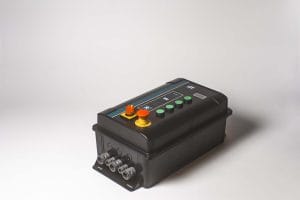

Control panel for 1 three-phase 380V AC hydraulic motor, for dock levelers.
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel for 1 three-phase 380V AC hydraulic motor, for dock levelers.
Equipo sin radio
Motor en alterna
Potenciómetro
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel for 1 three-phase 230V AC motor. Power stage through frequency converter, allowing the speed to be regulated,
as well as programming acceleration and deceleration ramps. Compatible with RS485 format absolute encoder. Display for selection of options and communication of door status. “Green Touch” system: APP to configure the panel with a mobile phone. NFC reader for Green Touch System included.
Bornes enchufables
EncoderEquipo sin radio
Green Touch System
Led indicador de estado de entradaMotor en alterna
Programación Digital
Receptor Wirelessband integrado o conector para receptor Wirelessband
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel for 1 motor 230V AC single-phase or three-phase or 380V AC three-phase. Power stage by industrial contactors. Available with magnetic motor circuit breaker. Compatible with absolute encoder RS485 format. Supports
Bornes enchufablesEncoderEquipo sin radioLed indicador de estado de entradaMotor en alternaPotenciómetroProgramación DigitalReceptor Wirelessband integrado o conector para receptor Wirelessband
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel for 1 three-phase 230V AC motor. Power stage using a frequency converter, allowing the speed to be regulated, as well as the programming of acceleration and deceleration ramps. Compatible with RS485 format absolute encoder. Supports – SRT and SRT MN radio receiving card – Wirelessband SRT BAND receiving card – DMT magnetic loop detector card
Bornes enchufablesEncoderLed indicador de estado de entradaPotenciómetroProgramación DigitalReceptor Wirelessband integrado o conector para receptor Wirelessband
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel designed for the control of 2 motors 230V AC. Light indicators on the control inputs.
Industrial sectional door
Loading bays
Ramp
Speed door
TableControl panel for 1 motor at 230V AC single-phase, three-phase or 380V AC three-phase. Power stage using industrial contactors. Version available with thermal motor protector. Compatible with RS485 format absolute encoder. Display for selection of options and communication of door status. “Green Touch” system: APP to configure the panel with a mobile phone. NFC reader for Green Touch System included.
Bornes enchufablesLed indicador de estado de entradaReceptor Wirelessband integrado o conector para receptor Wirelessband
Industrial sectional door
Loading bays
Ramp
Speed door
TableCombined control panel for dock leveler and door. Power stage by industrial contactors, with integrated motor circuit breaker with current control.
Selection of options via microswitch or Green Touch APP: NFC (Android)
or Bluetooth LE (IOS Android).
Dock levelers or lifting tables: three-phase 380V AC hydraulic motor. 1
electro-valve (available up to 4 with plug-in external cards). 2 limit switches (available up to 4 with plug-in external cards).
Door: 230/380V AC three-phase motor. Compatible with RS485 format
absolute encoder. 2 limit switches (open/close). Photocell input. Door status relay indication.
Additional elements: traffic light, vehicle safety chock, door position indicator, Wirelessband 8K2 or OSE safety bands…
Bornes enchufablesEquipo sin radioLed indicador de estado de entradaMotor en alternaPotenciómetroProgramación DigitalReceptor Wirelessband integrado o conector para receptor Wirelessband
